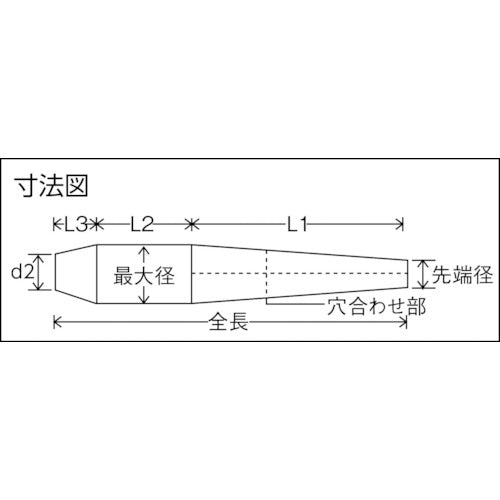

Catalog number: TYSP-32 Features: ● Used for aligning holes in steel plates, etc. Applications: ● For temporarily fixing holes in steel plates. Specifications: ● Total length (mm): 260 ● Tip diameter (mm): 17 ● Maximum diameter (mm): 36 ● Hole alignment part dimensions (mm): 32 ● L1 (mm): 165 ● d2 (mm): 28 ● L2 (mm): 65 ● L3 (mm): 30 ● Hardening hardness: HRC40 Material/Finish: ● Carbon steel Note: ● For safety, it is recommended that you select the taper part (L1) so that it matches the hole diameter at about 1/3 of the point from the body part (D).
