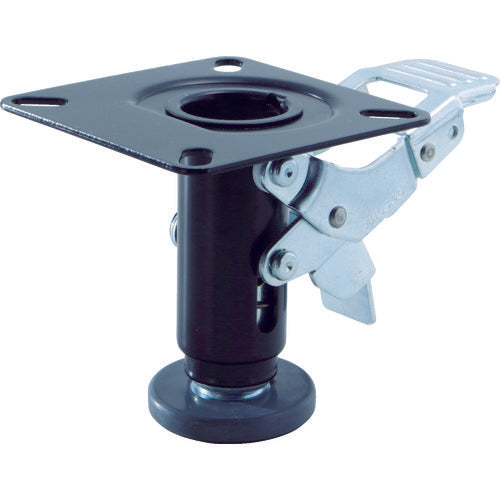

TRUSCO Lock Stopper 909 for 100 Diameter TLS909-WJ1-BAR01 1 pc

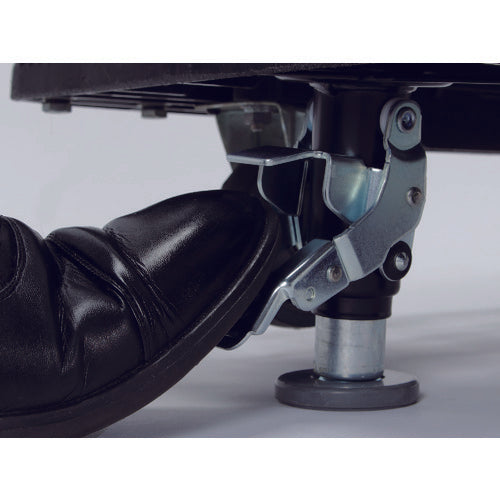

Catalog number: TLS909-WJ1-BAR01 Features: ● A safe steel floor lock with excellent operability and durability. ● The built-in spring presses against the floor and locks. (The cart will not lift when locked.) Uses: ● As a lock stopper for steel transport vehicles. Specifications: ● Appropriate mounting height (mm): 144 ● Minimum height (mm): 124 ● Maximum height (mm): 149 ● Stroke (mm): 25 ● Mounting base (mm): 120 x 120 ● Mounting pitch (mm): 85-100 x 85-100 ● Presses the floor with a force of 40 kg when locked regardless of the allowable load Material/Finish: ● Steel Caution: ● Please strictly observe the appropriate mounting height. The mounting height of rubber wheels will decrease depending on the load. ● The image shows the product painted black, but from 2018 to the first half of 2019, the product will be available in a plated type.
