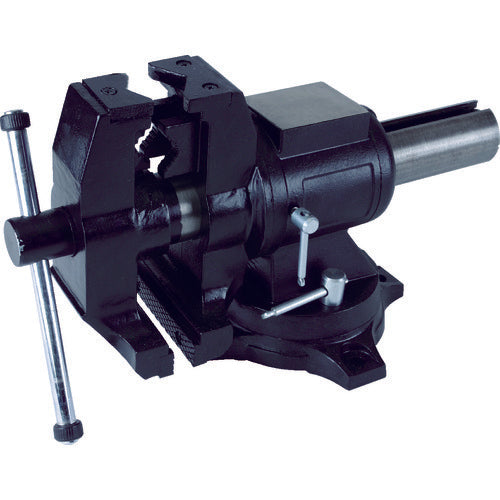

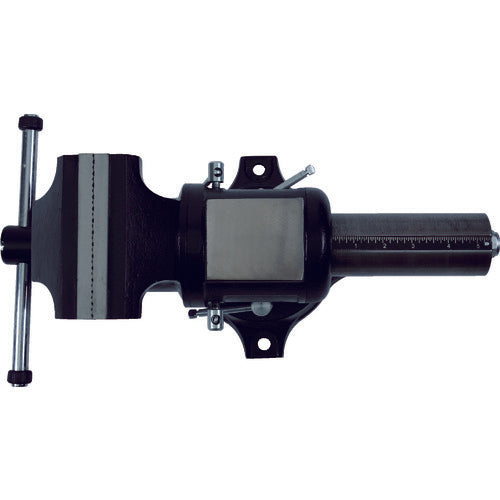

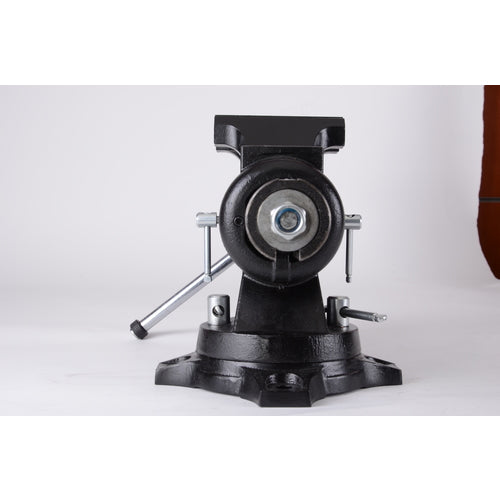

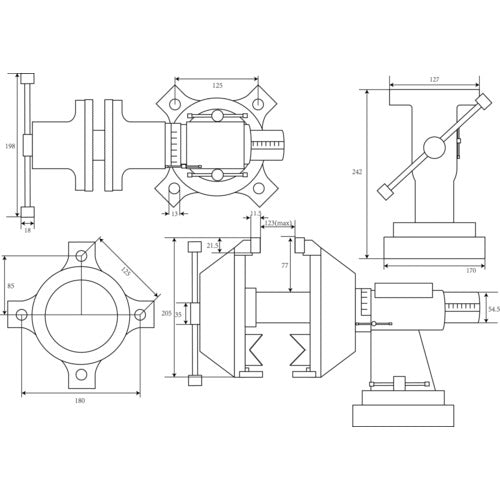

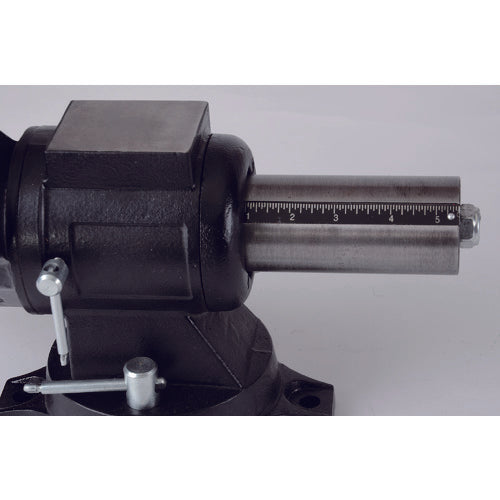

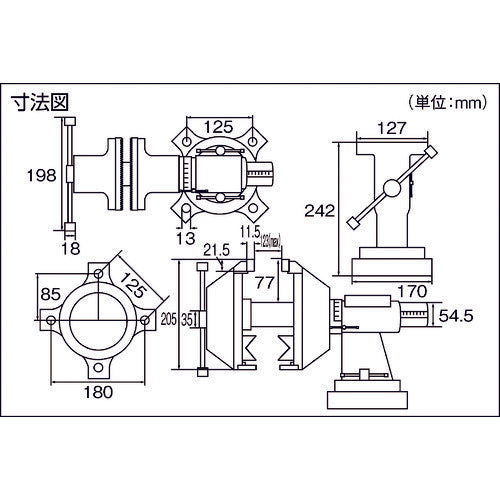

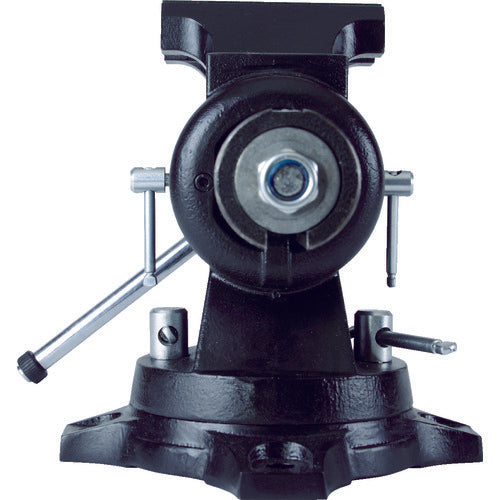

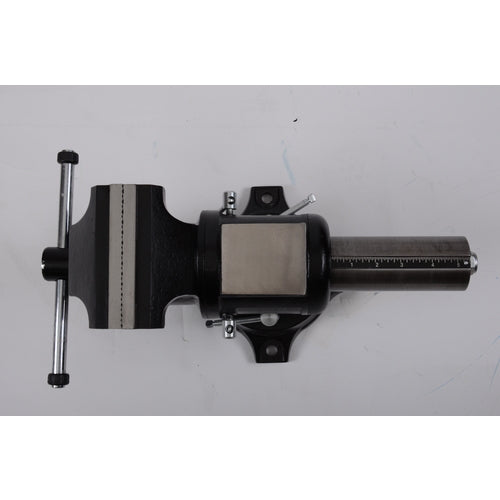

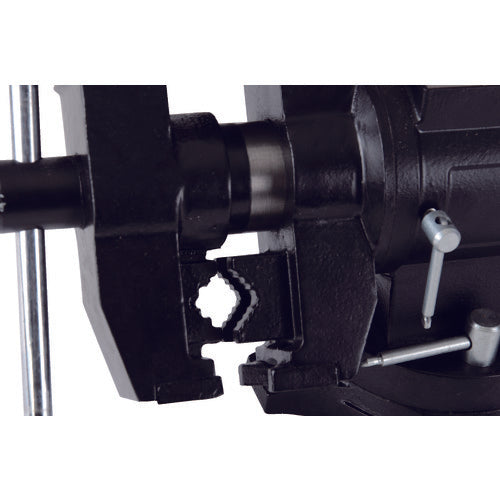

Catalog number: TMCV-125 Features: ● Made of ductile cast iron, it is durable. ● Can rotate 360° up and down in parallel. ● Can be used as a vice for pipes and irregular objects. ● Comes with anvil function. Specifications: ● Total length (mm): 420 ● Width (mm): 126 ● Height (mm): 246 ● Mouth width (mm): 126 ● Mouth opening (mm): 125 ● Mouth depth (mm): 78 ● Mounting hole dimensions (mm): 12.5 ● Clamping pressure (kN): 19.6 ● Type: Combination vice ● Mounting dimensions (mm) F: 125 ● Mounting dimensions (mm) G: 180 ● Mounting dimensions (mm) H: 85 ● Clamping pipe diameter: 8 to 50 mm Material/Finish: ● Body: Ductile cast iron (FCD450) ● Shaft, handle, jaws: Steel Set contents/Accessories: ● Rotating table Caution: ● Do not overtighten the handle by hitting it with a hammer, etc. ●Do not insert a pipe or other object into the handle to extend it and tighten it excessively. ●Do not use a lever to bend a workpiece secured in the vice or subject it to excessive shock. ●Damage or malfunction caused by misuse is not covered by the warranty.
