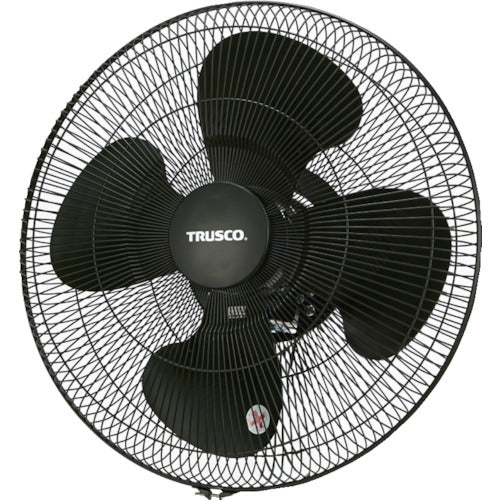

TRUSCO Fully enclosed plastic blade factory fan Factory fan Main unit only FAFP-45 1 unit

Catalog number: FAFP-45 Features: ● A fully enclosed motor factory fan that is resistant to dust. ● Equipped with a highly safe thermal protector. ● The body is made of aluminum die-cast and the neck is made of strong steel plate, so it can be used in harsh environments. Uses: ● For ventilation and air circulation in factories and warehouses. Specifications: ● Power supply (V): Single phase 100 ● Power consumption (W) (50/60Hz): 120/160 ● Blade diameter (cm): 45 ● Width (mm): 840 ● Power cord length (m): 1.7 ● Color: Black ● Blade material: PP ● Replacement blade: FAFP-4510 ● Oscillation: Yes ● Air volume adjustment: 3 levels ● Air volume (［［M3］］/min): Strong (50Hz/60Hz): 178/20 2 Medium (50Hz/60Hz): 158/154 Weak (50/60Hz): 140/126 ● Maximum air volume (m³/min) (50Hz): 178 ● Maximum air volume (m³/min) (60Hz): 202 ● Product name: Main unit ● Power cord length: 1.7m (with plug) ● Blades: 4 (made of polypropylene) ● Swing angle: 75° ● Main unit dimensions (width x depth x height): Material/Finish: ● Blades: Polypropylene (PP) Caution: ● Avoid using in places where high frequency is generated or in environments where oil is floating. ● Cannot be used alone. ● Factory fan tabletop angle set part number: FAF-A (sold separately) is required. Tabletop type FAFP-45A will be used. ● Tripod is not available as an option, so it cannot be made into a stand type.
