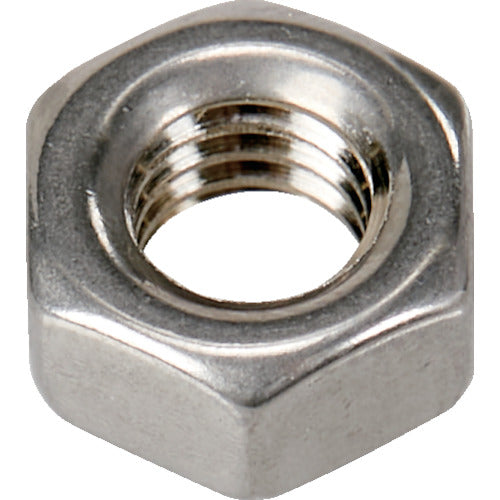

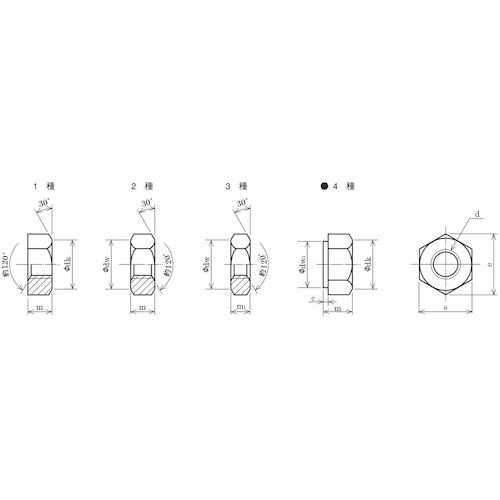

Catalog number: Y809-0008 Features: ●A standard hex nut with chamfered one side. ●A small pack series that is convenient when you only need a small amount. Specifications: ●Nominal diameter: M8 x 1.25 ●Two-sided width dimension (mm): 13 ●Height (mm): 6.5 ●Nut type: Type 1 ●Strength category: 4T ●Dimension (mm) B: 13 ●Dimension (mm) C: 15 ●Dimension (mm) e: 15 ●Dimension (mm) k: 6.5 ●Dimension (mm) m: 6.5 ●Dimension (mm) s: 13 ●Package: Bag ●Hex nut type 1 (chamfered on one side, height = approximately 80% of the screw diameter) Material/Finish: ●Steel ●Surface treatment: Nickel-plated finish
