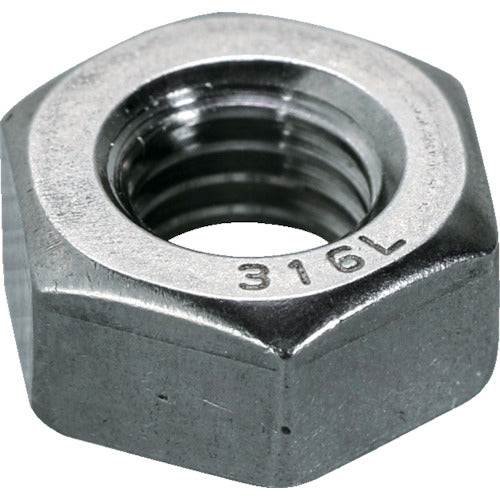

TRUSCO Hexagon Nut Type 1 SUS316L M6 x 1.0 16 pieces (Stainless Steel) B132-0006 1 PK

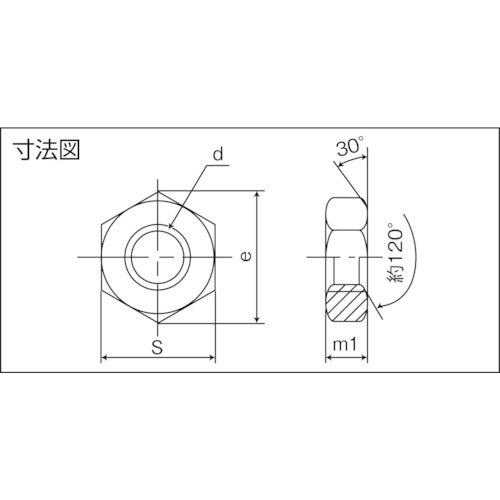

Catalog number: B132-0006 Features: ●A standard hexagonal nut with chamfered edges on one side. ●SUS316L has enhanced corrosion resistance (intergranular corrosion resistance) against seawater and various highly corrosive media. Specifications: ●Nominal diameter: M6 x 1.00 ●Two-sided width dimension (mm): 10 ●Height (mm): 5 ●Nut type: Type 1 nut ●Strength classification: Equivalent to A4-70 ●Thread pitch (mm): 1.0 ●Dimension (mm) B: 10.0 ●Dimension (mm) C: 11.5 ●Dimension (mm) e: 11.5 ●Dimension (mm) k: 5.0 ●Dimension (mm) s: 10.0 ●Two-sided width B (mm): 10.0 ●Package: Bolt-on pack (blister) ●Nut type 1 (height: 80% of thread diameter, one-sided chamfered) Material/Finish: ●Stainless steel (SUS316L)
