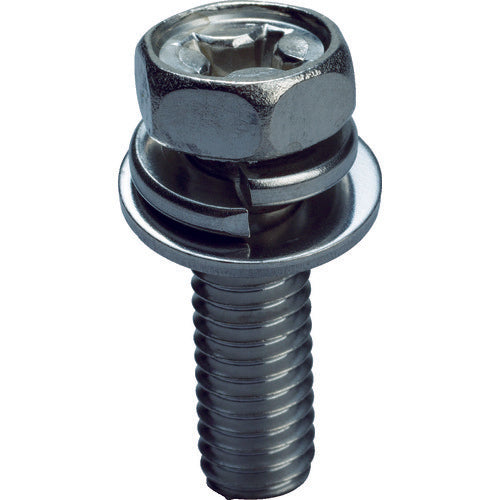

TRUSCO Cross recessed upset assembly P=3 Stainless steel M6 x 15 22 pieces / (+) upset bolt with spring washer + JIS washer Y336-0615 1 PK

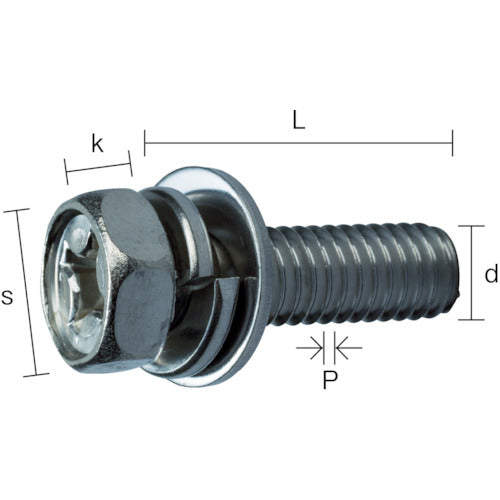

Catalogue number: Y336-0615 Features: ●Upset type cross recessed hex bolt with built-in washer and spring washer. ●Built-in washer and spring washer improves work efficiency. ●Both wrenches and cross head drivers can be used for tightening tools. ●Made of stainless steel, it has excellent corrosion resistance. Specifications: ●Dimensions (mm) d: M6 ●Dimensions (mm) L: 15 ●Thread pitch (mm): 1.0 ●Spring washer outer diameter (mm): 11.5 ●Spring washer thickness (mm): 1.5 ●Flat washer outer diameter (mm): 13 ●Flat washer thickness (mm): 1.0 ●Strength category: A2-50 ●Two-sided width dimension (mm): 10 ●Hexagonal section height (mm): 4.0 ●Package: Bolt pack (blister) Material/Finish: ●Stainless steel
