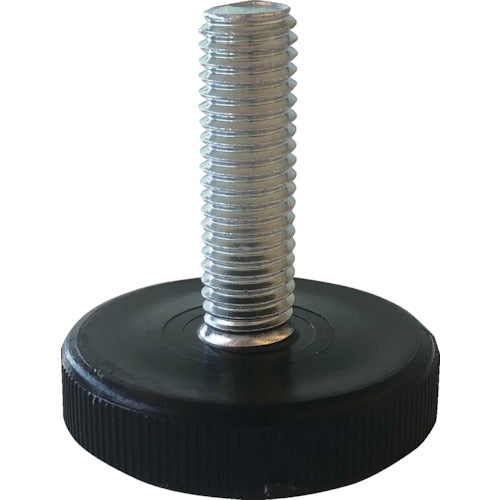

TRUSCO Desktop Adjuster Base 20Φ M5-14 MJJ5-14-20 1 pc

Catalog number: MJJ5-14-20 Features: ●The base is small, thin, and the screw is short, making it ideal for tabletop use. ●The base is knurled, making it easy to grip and turn. ●The height can be fine-tuned with the included hex nut. Applications: ●For measuring instruments, office equipment, control panels, jigs, etc. Specifications: ●Allowable load (kgf): 71.4 ●Screw dimensions: M5 x 0.80 ●Screw length (mm): 14 ●Total height (mm): 21 ●Base diameter (mm): 20 ●Color: Black Material/Finish: ●Base: PP resin ●Screw: Trivalent chromate (SWCH10R) ●Hex nut: Trivalent chromate (equivalent to SWRCH)
