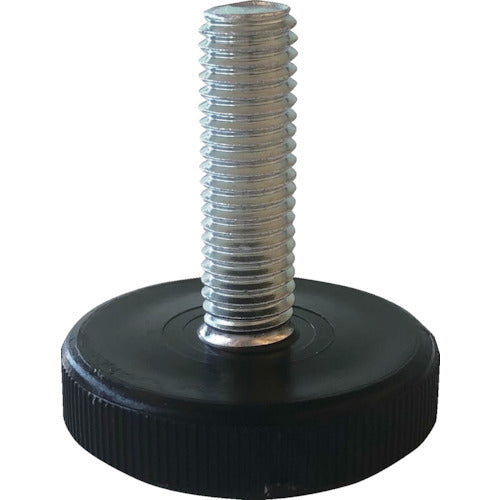

TRUSCO Desktop Adjuster Base 30Φ M8-36 MJJ8-36-30 1 pc

Catalog number: MJJ8-36-30 Features: ●The base is small, thin, and the screw is short, making it ideal for tabletop use. ●The base is knurled, making it easy to grip and turn. ●The height can be fine-tuned with the included hex nut. Applications: ●For measuring instruments, office equipment, control panels, jigs, etc. Specifications: ●Allowable load (kgf): 183.6 ●Screw dimensions: M8 x 1.25 ●Screw length (mm): 36 ●Total height (mm): 44 ●Base diameter (mm): 30 ●Color: Black Material/Finish: ●Base: PP resin ●Screw: Trivalent chromate (SWCH10R) ●Hex nut: Trivalent chromate (equivalent to SWRCH)
