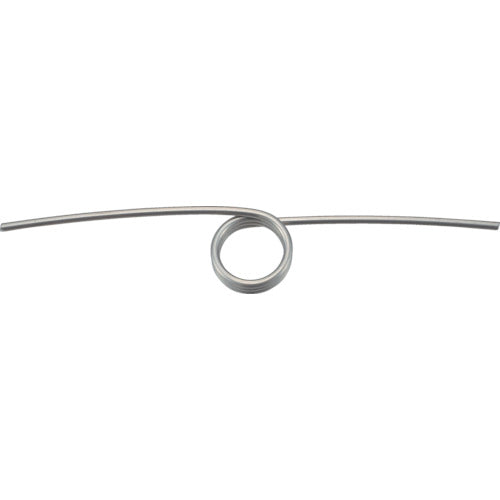

TRUSCO [Discontinued] TRUSCO Torsion Spring D12Xd1.6 Number of turns 2 Angle 180 2 pieces TTS1216-48-C2 1 PK

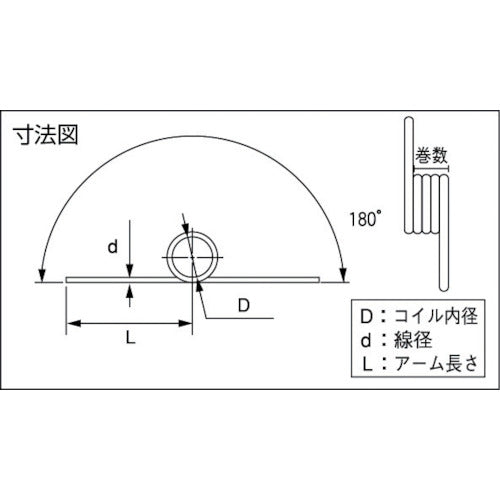

Catalog number: TTS1216-48-C2 Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod should ideally be approximately 90% of the coil inner diameter at maximum load. ● This spring requires force to be clamped back by a clip or similar. Specifications: ● Wire diameter d (mm): 1.6 ● Coil inner diameter D (mm): 12 ● Length L (mm): 48 ● Number of turns (turns): 2 ● Spring constant (N・mm/deg): 9.80 ● Allowable displacement (°): 35 ● Arm angle: 180° Material/Finish: ● Stainless steel (SUS304-WPB)
