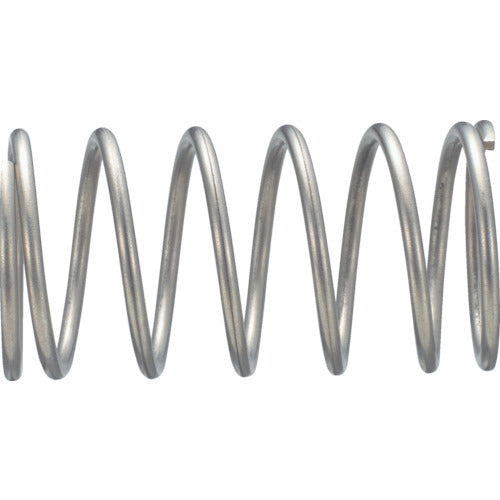

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D4.00Xd0.35XL13.0 20pcs TCS400-035-130 1PK

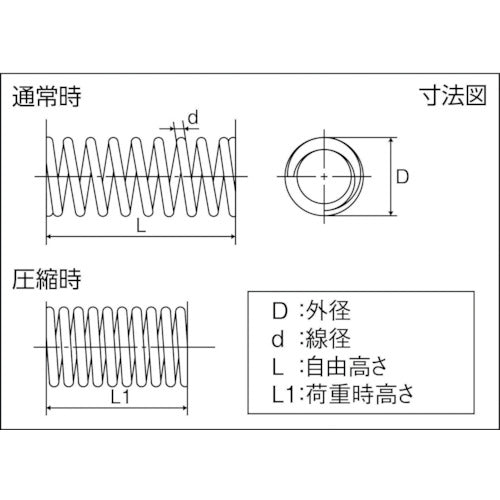

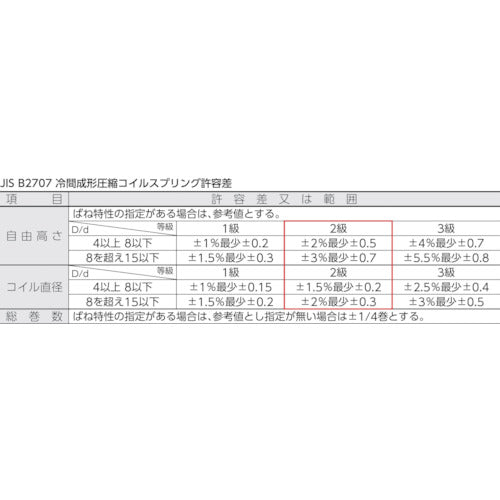

Catalog number: TCS400-035-130 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.35 ● Outer diameter D (mm): 4 ● Free height L (mm): 13 ● Number of turns (turns): 9.5 ● Spring constant (N/mm): 0.353 ● Allowable load (N): 2.65 ● Load height L1 (mm): 5.5 ● Solid height (mm): 3.7 Material/Finish: ● Stainless steel (SUS304-WPB)
