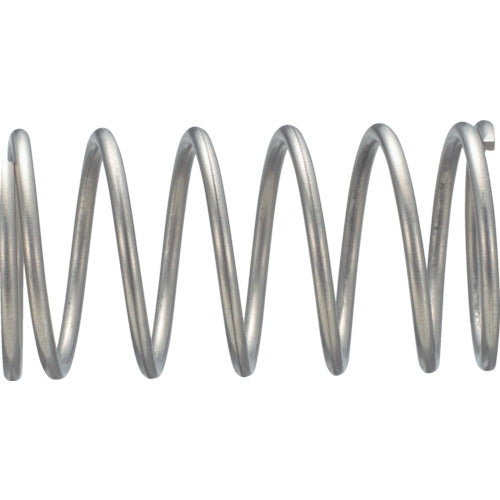

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D6.50Xd0.70XL16.0 20pcs TCS650-070-160 1PK

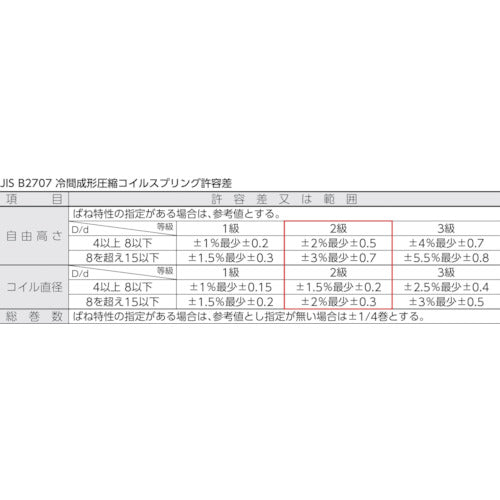

Catalog number: TCS650-070-160 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.7 ● Outer diameter D (mm): 6.5 ● Free height L (mm): 16 ● Number of turns (turns): 9.5 ● Spring constant (N/mm): 1.412 ● Allowable load (N): 9.76 ● Load height L1 (mm): 9.09 ● Solid height (mm): 7.4 Material/Finish: ● Stainless steel (SUS304-WPB)
