TRUSCO [Sold out and discontinued] Pressed nylon caster with fixed stopper Φ130 TNKB-130 1 piece

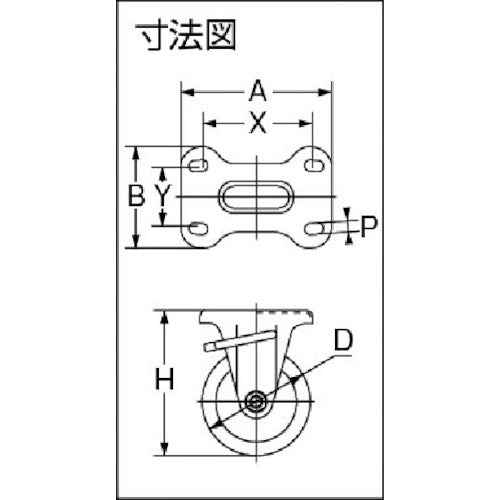

Catalog number: TNKB-130 Features: *The swivel section uses double bearings to achieve smooth rotation. *The wheel rotation section uses commercial bearings for excellent durability. *The steel wheel has a distinctive star mark shape with a good design. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 130 ● Type: Fixed (with stopper) ● Allowable load (daN): 140 ● Allowable load (kgf): 143 ● Wheel width (mm): 42 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 138 ● Mounting seat B (mm): 92 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 53-56 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1400 ● Plate type ● Commercial bearing included ● Fixed (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
