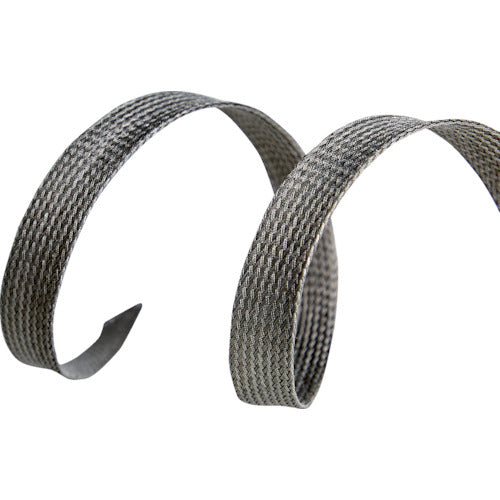

TRUSCO Conductive Braided Shielded Tube for Moving Parts 1m Natural Diameter 19mm TFLS-19-1 1 Piece

Catalog number: TFLS-19-1 Features: ● Excellent flexibility, EMC shield sleeve/copper braid suitable for noise countermeasures. ● Ideal for cable shielding/noise countermeasures for bending and moving parts. The tube diameter expands to about twice its size, so it can be inserted later. ● Heat-resistant thread allows soldering. Applications: ● For noise countermeasures for bending and moving parts. Specifications: ● Color: Gray ● Nominal diameter (mm): 19 ● Length (m): 1 ● Inner diameter (mm): Approximately 19 ● Maximum expanded diameter (mm): 28 ● Excellent elasticity, noise countermeasure shield sleeve that can be used for moving parts. ● Operating temperature range: -50 to 150°C ● For indoor use Material/Finish: ● Heat-resistant polyester thread, tin-plated copper foil
