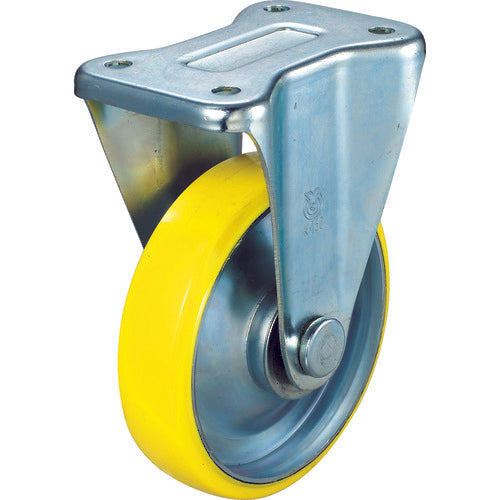

TRUSCO Antistatic Urethane Caster Fixed Φ150 TYUEK-150 1 pc

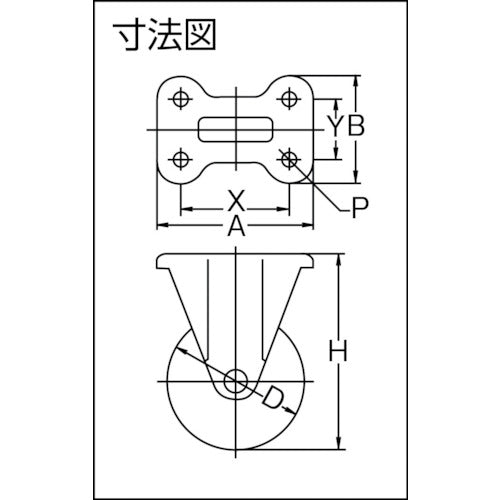

Catalog number: TYUEK-150 Features: * Antistatic urethane wheels make these casters less susceptible to static electricity and dust. Applications: * For electronic and medical equipment that dislikes static electricity. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type ● Allowable load (daN): 300 ● Allowable load (kgf): 306.0 ● Wheel width (mm): 38 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 137 ● Mounting seat B (mm): 93 ● Mounting pitch X (mm): 100 ● Mounting pitch Y (mm): 56 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 3000 ● Plate type ● Electrical resistance value: 10 [to the power of 8] Ω (This is an actual measured value, not a guaranteed value.) ● Commercial bearing included ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, antistatic urethane (yellow)
