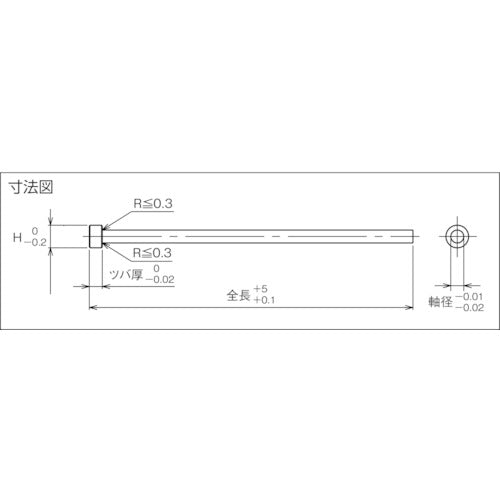

Catalog number: T-EPS12-200-4 Features: ● Pin for ejecting and releasing plastic molded products from a mold. Applications: ● As a part of a plastic mold. Specifications: ● Shaft diameter (mm): 12 ● Flange thickness (mm): 4 ● Overall length (mm): 200 ● H (mm): 17 ● For plastic molds ● Tolerance of pin tip (mm): -0.01 to -0.02 ● Overall length tolerance (mm): +0.5 to +0.1 Material/Finish: ● High-speed steel (SKH51: 59 to 61HRC)
