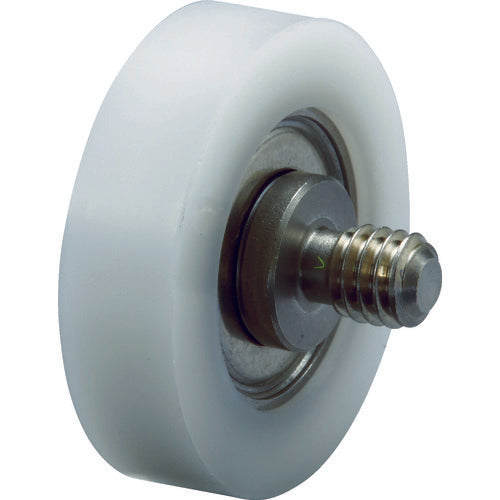

TRUSCO Plastic Bearing E Series Flat Type Hexagonal Hole Outer Diameter 25mm M5 TEFS2506M5 1 Piece

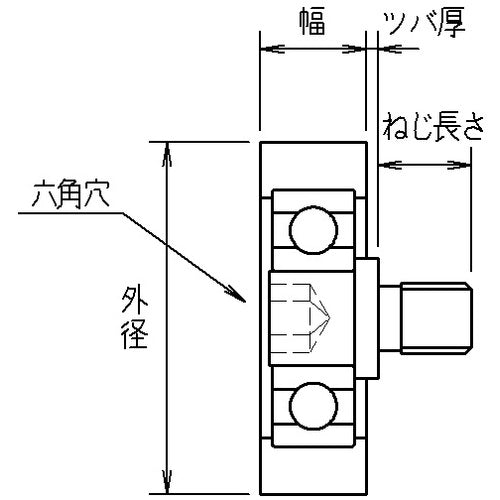

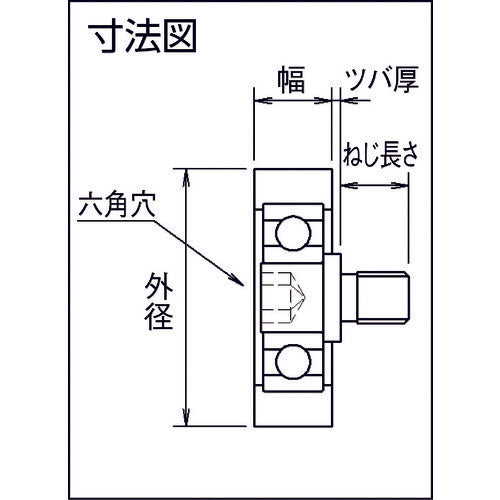

Catalog number: TEFS2506M5 Features: ●A resin-wrapped bearing with low noise during rotation. ●A resin-wrapped bearing with low noise and low vibration, made by resin-molding polyacetal (POM), which has excellent wear resistance, onto the outer periphery of a metal bearing. ●Complies with the RoHS directive. ●The recycling rate of POM materials has been improved based on the technical knowledge of the material manufacturer, reducing CO2 emissions by approximately 30% compared to conventional methods. Applications: ●As rollers for transport equipment, guide rollers, and various rollers. Specifications: ●Bearing: 696HZZ ●Outer diameter (mm): 25 ●Width (mm): 6 ●Estimated load (N): 98 ●Roller screw dimensions: M5 ●Thread length (mm): 8 ●Flange thickness (mm): 1 ●Hexagonal hole (mm): 3 ●Operating temperature range: -10℃ to 60℃ ●Resin-wrapped bearing ●Shaft screw: Stainless steel (SUS303) ●Resin: Polyacetal ●There is a relief groove at the base of the screw section. Material/Finish: ●Bearing: Stainless steel (SUS440C) JIS Class 0 ●Outer periphery: Polyacetal resin (POM) ●Shaft screw: Stainless steel (SUS303) Note: ●These are approximate load values ​​and are not guaranteed values.
