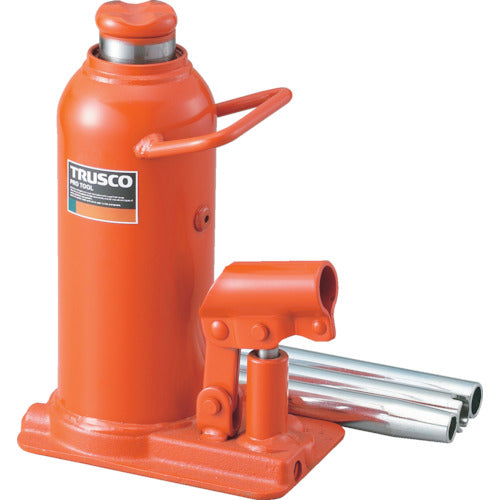

TRUSCO hydraulic jack 15 ton TOJ-15 1 unit

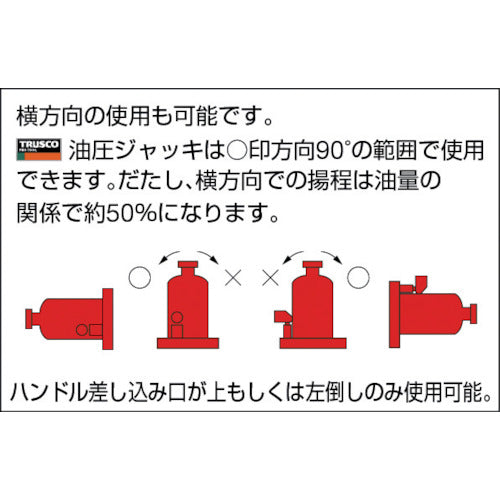

Catalog number: TOJ-15 Features: ●Weight is about 1/2 of the screw type. ●Operation force is light (39kgf or less) and demonstrates high performance. ●The load can be lowered by loosening the release valve and adjusting the speed. ●Can also be used horizontally. (Handle insertion port can only be tilted up or to the left. Lifting height in the horizontal direction is about 50%) ●The boiler was operated using heavy oil A to heat the cleaning solution used in product manufacturing at the factory, but by changing to a new cleaning machine, fuel reduction of about 2000L per year is expected. Applications: ●This jack is widely used in machinery, construction, civil engineering, automobiles, etc. Specifications: ●Lifting force kN (t): 150 (15) ●Stroke (mm): 165 ●Height (mm): 265-510 ●Head diameter (mm): 51 x 53 ●Auxiliary screw (mm): 80 ●Lifting force (kN): 150 ●Lifting force (t): 15 ●Large and heavy type Set contents/accessories: ●Handle Caution: ●The lifting height in the horizontal direction is approximately 50% due to the amount of oil. ●In the horizontal direction, it can only be used within the 90° range of the circle in the figure, with the handle insertion port facing up or to the left. ●Do not use on slopes or soft surfaces. The jack will tilt, the receiving part will slip, and serious damage will occur due to heavy objects falling.
