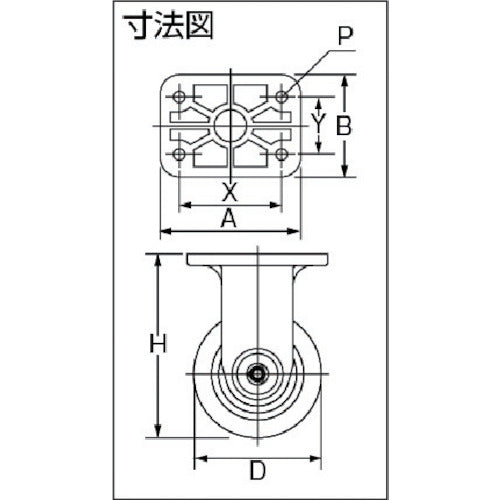

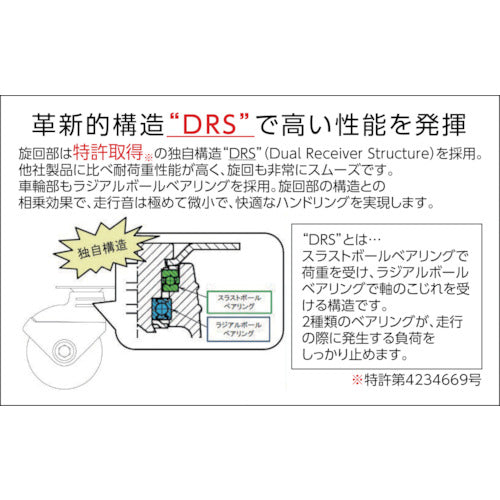

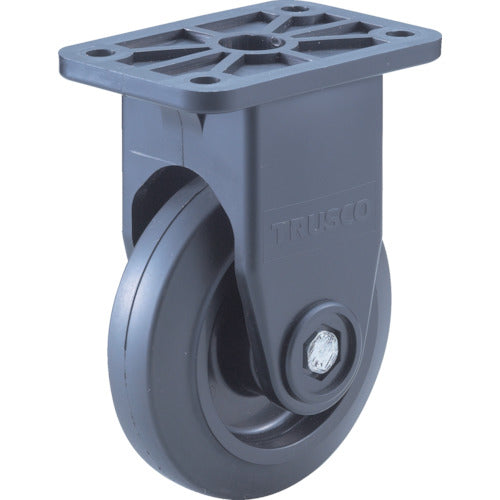

Catalog number: TYPK-100 Features: ●Uses our unique structure "DRS" and double bearing specifications for extremely smooth turning and comfortable handling. Applications: ●For transport carts used in water areas and outdoors. ●In addition, it is quiet when running, making it suitable for use in public facilities. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 9 ● Allowable load (N): 1000 ● Wheel material: Nylon wheel rubber ● Caster diameter (mm): 100 ● Mounting seat (mm): 110 x 80 ● Mounting pitch (mm): 80 x 45 ● Plate type ● Low noise specification ● Fixed type Material / Finish: ● Body: Nylon ● Wheels: Nylon wheel, rubber
