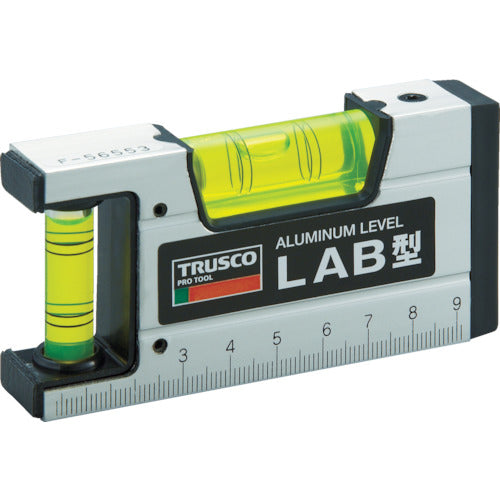

TRUSCO Box-type aluminum level with magnet 100mm LABM-100 1 piece

Catalogue number: LABM-100 Features: ● A semi-cylindrical vial that appears larger due to the lens effect. (Horizontal) ● Comes with a box-shaped frame and scale graduations. ● Comes with a luminous sheet and a shock-resistant cover that maintains precision. ● Comes with 4 graduations. ● Comes with a vertical vial. ● Adjustment method: Use a Torx screwdriver No. T10 to adjust the horizontal and vertical precision. (Except for the vertical of LAB-100 and LABM-100) ● Comes with a magnet, making it convenient for measuring steel construction work. ● Comes with an end window for vertical measurement. Applications: ● For horizontal and vertical measurements. Specifications: ●Length (mm): 100 ●Height (mm): 50.5 ●Thickness (mm): 19 ●Magnet: 1 place ●Accuracy: Within ±1.5mm/m = ±0.0859° ●Sensitivity: 0.5mm/m = 0.0286° ●Vertical bubble tube: Included ●Magnet included Material/Finish: ●Body: Aluminum ●Bubble tube: Acrylic resin (PMMA) Note: ●Vertical accuracy cannot be adjusted.
