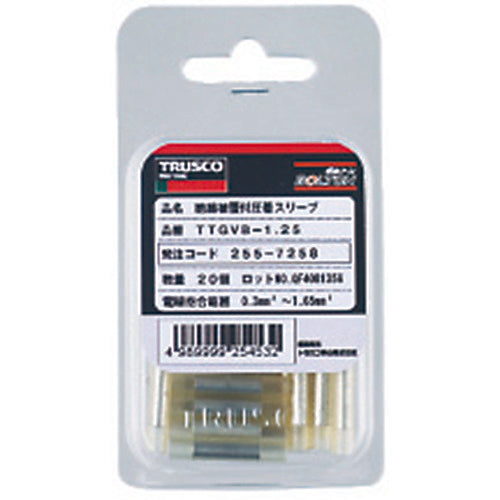

TRUSCO Insulated Crimp Sleeve Stranded Wire 0.30-1.65mm 2B Type 20 Pieces T-TGVB-1.25 1 PK

Catalog number: T-TGVB-1.25 Features: ●Combined with insulating coating for butting crimp sleeves. Applications: ●Comes with insulating coating for B-type sleeves that butt together wires inserted from both sides of the sleeve for crimping and connecting. Specifications: ●Wire clamping range Stranded wire (mm2): 0.30-1.65 ●Wire clamping range AWG: 22-16 ●Color: Silver ●Total length (mm): 25.5 ●Outer diameter (mm): 3.2 ●Inner dimension (mm): 1.7 ●JIS standard product: × ●L (mm): 25.5 ●R (mm): 15.0 ●D (mm): 3.2 ●d (mm): 1.7 ●B-type ●Compatible tools: Tools for insulated crimp terminals and sleeves Material/Finish: ●Sleeve: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: PVC
