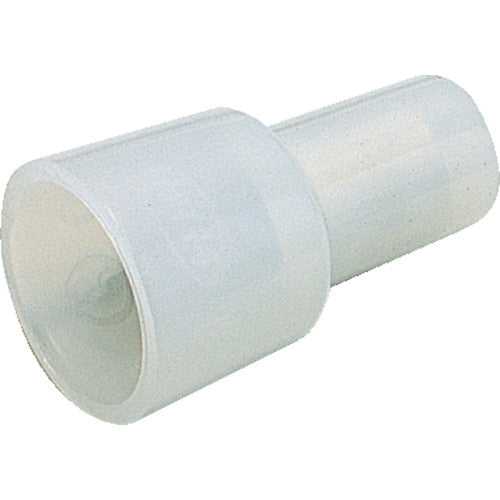

TRUSCO Insulated closed end connector CE-1 (40 pieces) T-CE-1 1 PK

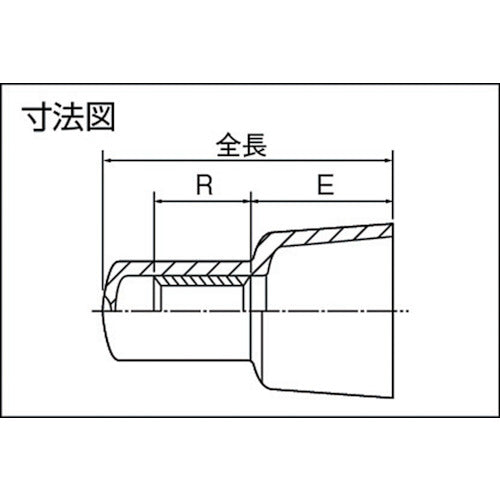

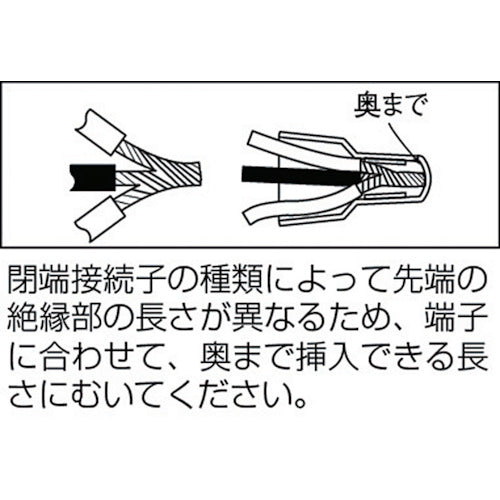

Catalog number: T-CE-1 Features: ●One side of the insulating coating is closed. Applications: ●For connecting multiple wires by overlapping them when wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5 to 1.75 ●Wire clamping range AWG: 22-16 ●Rated current (A): 7 ●Total length (mm): 18 ●R (mm): 6.2 ●E (mm): 8.8 ●Inner diameter (mm): 6.5 ●Compatible tool: Closed end connector tool ●d (mm): 6.5 ●L (mm): 18.0 ●JIS C2807 standard product ●Rated voltage: 300V ●Color: Milky white ●Operating temperature: -40℃ to 105℃ Material/Finish: ●Connector: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon
