TRUSCO Oil-resistant rubber caster with free double stopper Φ100 TYOJB-100A 1 piece

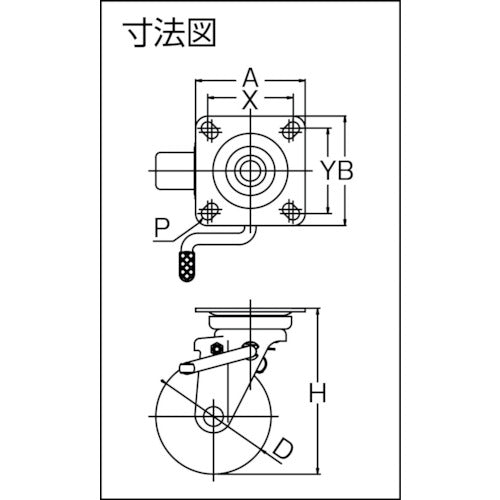

Catalog number: TYOJB-100A Features: ●Compared to conventional rubber wheels, it has excellent oil resistance and prevents deterioration. ●Ideal for transporting heavy objects in factories that use a lot of oil. Applications: ●For transporting heavy objects in factories that use a lot of oil. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Plate type ● Commercial bearing included ● Free-wheeling (with double stoppers) ● Locks the swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, oil-resistant rubber
