TRUSCO Heat-resistant phenolic caster, swivel, Φ150, TYPBJ-150, 1 piece

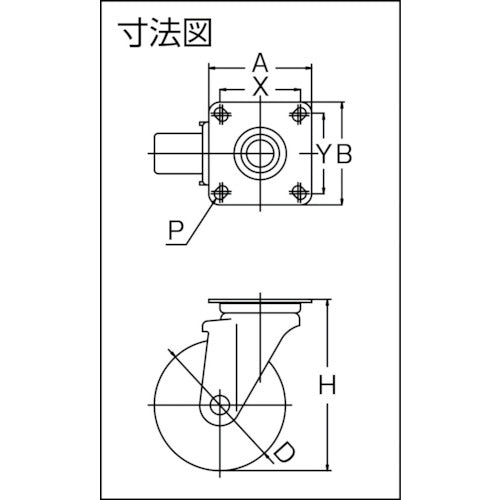

Catalogue number: TYPBJ-150 Features: ● Phenol is used for the wheel material, and it can be used up to 200°C, and has excellent wear resistance and load capacity. ● Caster suitable for use in high temperature environments. Applications: ● For transportation in high temperature environments. Specifications: ● Wheel diameter D (mm): 150 ● Type: Swivel ● Allowable load (daN): 200 ● Allowable load (kgf): 204.0 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 87-94 ● Mounting pitch Y (mm): 87-94 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 2000 ● Plate type ● Heat-resistant grease specification ● Swivel Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Phenol
