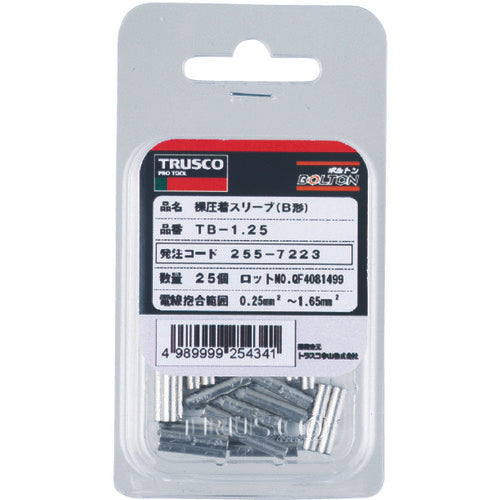

Catalog number: TB-1.25 Features: ●There is a wire stopper in the tube. Uses: ●Insert wires from both sides of the sleeve, and use the protrusions (stoppers) inside the sleeve to butt the wires together for crimping and connection. Specifications: ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range AWG: 22-16 ●Total length (mm): 15 ●Inner dimensions (mm): 1.8 ●JIS standard product: ○ ●Color: Silver ●Compatible tools: Tools for bare crimp terminals and sleeves ●External dimensions (mm): 3.3 ●L (mm): 15.0 ●d (mm): 1.7 ●JIS C2806 compliant (except P-1.25) ●B type Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating
