TRUSCO bare crimp terminal round φ3.2 length 12.0 (70 pieces) T-R1.25-3 1 PK

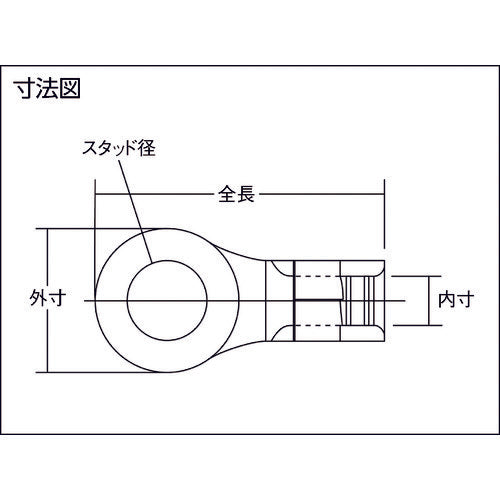

Catalog number: T-R1.25-3 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 0.57-1.44 ● Wire clamping range Stranded wire (mm2): 0.25-1.65 ● Wire clamping range AWG: 22-16 ● External diameter (mm): 5.5 ● Stud diameter (mm): 3.2 ● Total length (mm): 12 ● Internal dimension (mm): 1.7 ● JIS standard product: ○ ● Color: Silver ● Wire clamping range Solid wire mm: 0.57-1.44 ● Round type, compatible with solid wire Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating
