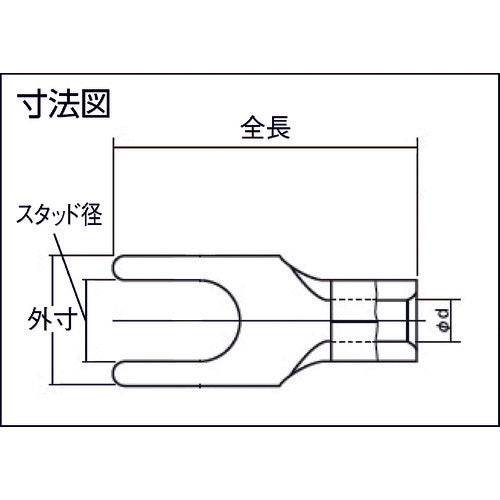

Catalog number: T-1.25Y-4N Features: ●One side of the mounting hole on the contact surface (tongue) is open, making this a bare crimp terminal that can be installed without completely removing the screw. Applications: ●For connecting soft steel stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●External dimension (mm): 6.4 ●Stud diameter (mm): 4.3 ●Total length (mm): 16.4 ●Inner dimension (mm): 1.7 ●JIS standard product: × ●Color: Silver ●External dimension (mm): 6.4 ●Tip-open type, single wire compatible type ●Compatible tools: Bare crimp terminal, sleeve tool Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
