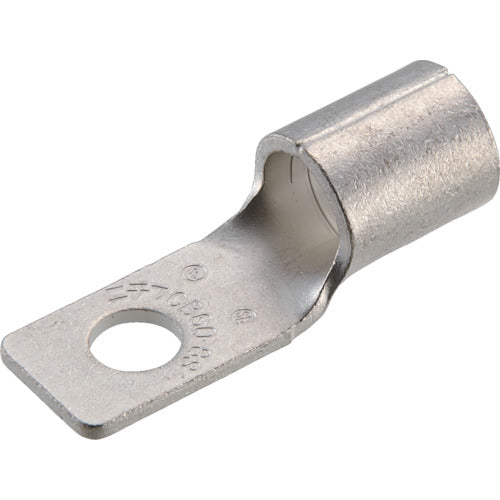

TRUSCO Bare crimp terminal CB type φ8.4 Length 49.5 (3 pieces) T-CB60-8S 1 PK

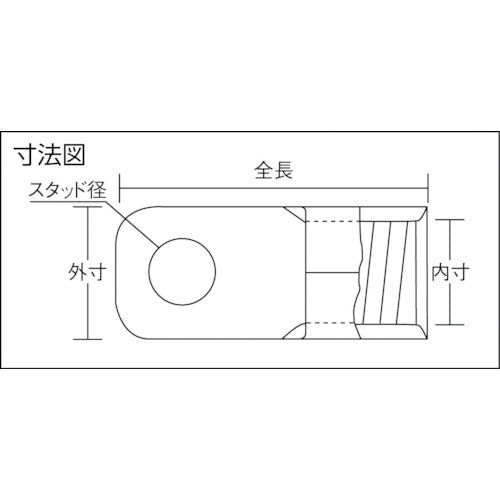

Catalog number: T-CB60-8S Features: ● A bare crimp terminal with a thin contact surface (tongue) and mounting holes for screw fixing. Applications: ● Terminals for breakers, etc. Specifications: ● Wire clamping range Stranded wire (mm2): 42.42-60.57 ● Wire clamping range AWG: 1/0 ● External dimension (mm): 16 ● Stud diameter (mm): 8.4 ● Total length (mm): 49.5 ● Internal dimension (mm): 11.4 ● JIS standard product: × ● Color: Silver ● External dimension (mm): 16 ● CB type ● Compatible tools: Tools for insulated crimp terminals and sleeves Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating
