TRUSCO bare crimp terminal, round type (6 pieces), stud diameter Φ8.4, total length 32.5 mm, T-R14-8 1 PK

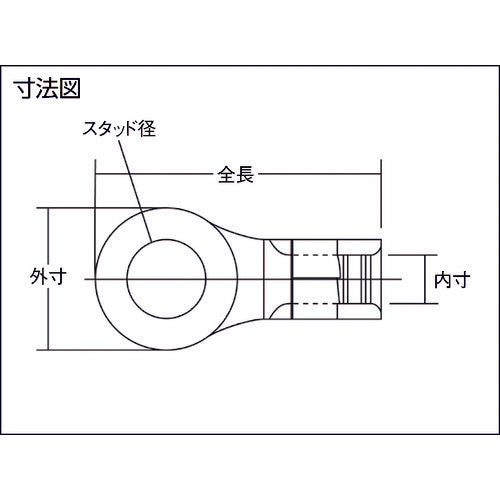

Catalog number: T-R14-8 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 10.52-16.78 ● Wire clamping range AWG: 6 ● Stud diameter (mm): 8.4 ● Total length (mm): 32.5 ● Inner dimensions (mm): 5.8 ● JIS standard product: ○ ● Color: Silver ● External dimensions (mm): 16 ● Round shape (not compatible with solid wire) Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating
