TRUSCO bare crimp terminal bar type 30 pieces T-TC2-11 1 PK

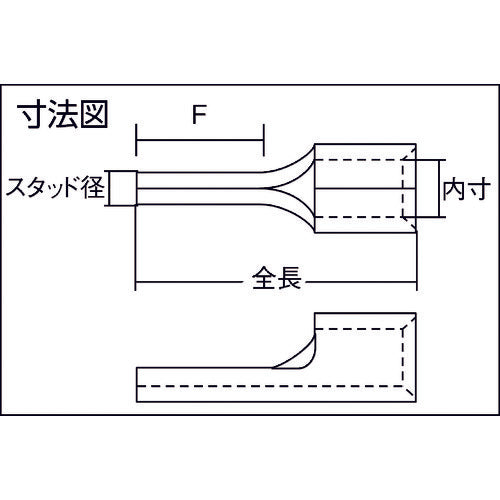

Catalog number: T-TC2-11 Features: ● A rod-shaped terminal with a round rod contact surface (tongue). Applications: ● For connecting soft steel stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.14-1.82 ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Stud diameter (mm): 1.9 ● Total length (mm): 17.5 ● Inner dimension (mm): 2.3 ● F (mm): 11 ● Pack quantity (pcs): 30 ● Rod-shaped Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
