TRUSCO Ultra Low Head Cap Bolt Stainless Steel M8 x 8 3 Pieces / Hexagonal Socket Head Bolt (CAP) Y311-0808 1 PK

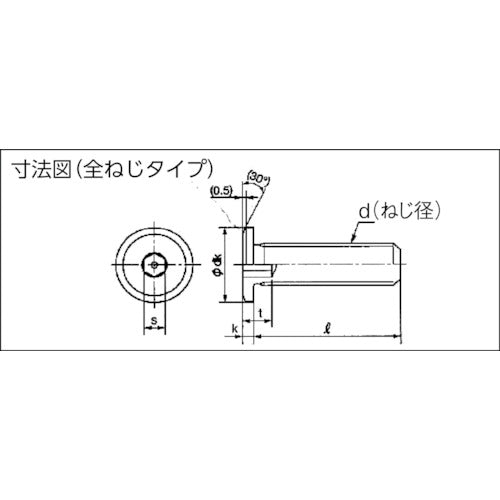

Catalog number: Y311-0808 Features: ●The head is thin, so after tightening, the head is not noticeable and the finish is neat. Specifications: ●Dimensions (mm) d: M8 ●Dimensions (mm) L: 8 ●Thread pitch (mm): 1.25 ●Thread length (mm): 8 ●Thread type: Regular ●Head diameter (mm): 13 ●Head thickness (mm): 1.5 ●Hexagonal hole diagonal dimension (mm): 4.0 ●Neck length (mm): 8 ●Hexagonal hole depth (mm): 4.2 ●Package: Bolt pack (blister) Material/Finish: ●Stainless steel (equivalent to SUS304)
