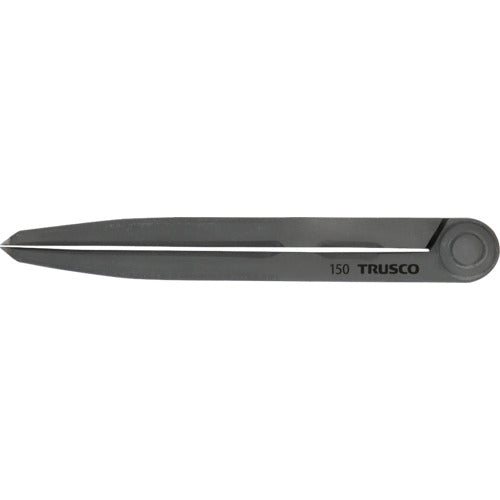

TRUSCO Carbide Tip Compass Length 150 Circle Diameter 230 PTC-150-A 1 piece

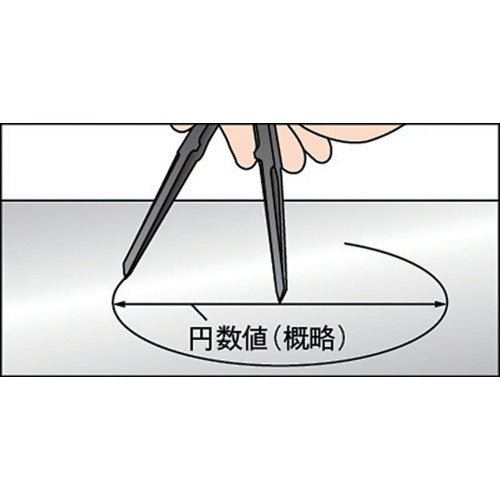

Catalogue number: PTC-150-A Features: ●The tip is equipped with a carbide tip, so it can be used to mark hard steel and glass. ●The surface is treated with black phosphorus dyeing, so it is rust-resistant and easy to handle. ●The joint is rivet with a washer and pin, so it can be adjusted even if it becomes loose, allowing for long-term use. ●By tapping the rivet pin, it can be tightened to open and close, and the rivet can be re-riveted. Applications: ●For circular arcs of general steel, hardened products, glass, etc. ●For marking circles and dividing them into equal parts. ●For transferring dimensions. Specifications: Nominal size (mm): 150 Total length (mm): 145 Plate thickness (mm): 8 Compass circle diameter (mm): 230 Hardness: Approximately 250HB Material/Finish: Body (including rivet pin): Carbon steel Hardness approximately 250HB Tip: Carbide tip (G2) Caution: Please be careful as the carbide tip may chip if dropped. To maintain the accuracy of the measurement dimensions, the legs are hard to open. When using, insert a flathead screwdriver to open. The tightening will loosen with repeated use. If it is too loose, tap the rivet to tighten it. The compass circle value is an approximate value when the legs are opened at 45°.
