TRUSCO Blower Handy Jet Stainless Steel Blade Outer Diameter 200mm HJF-200S 1 Unit

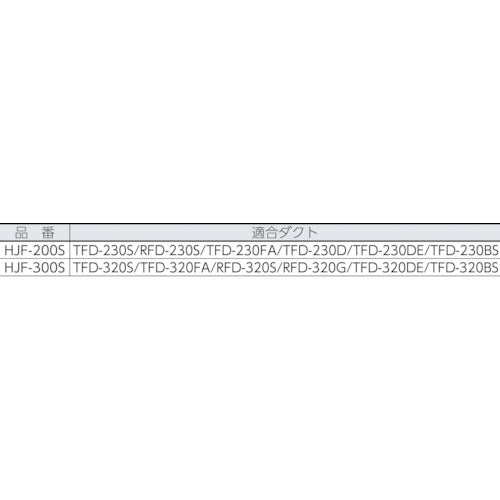

Catalog number: HJF-200S Features: ● Rust-resistant, so it can be used at shipyards, civil engineering, and construction sites. ● The double-sided bell mouth design is bell-shaped to reduce air resistance, achieving low noise levels. ● One unit can both blow and exhaust air. Applications: ● To prevent oxygen deficiency when working in confined spaces or localized work such as manholes and tunnels. ● To exhaust dust and gas generated during processing work, and to supply cool air at sites where duct work is not possible. Specifications: ● Power supply (V): Single phase 100 ● Air volume (m3/min) 50Hz: 19 ● Air volume (m3/min) 60Hz: 23 ● Compatible duct diameter (mm): 230 ● Noise level (dB(A)) 50/60Hz: 71/74 ● Blade diameter (mm): 200 ● Number of fan blades (pieces): 6 ● Output (kW) (50/60Hz): 0.135/0.2 ● Power consumption (W) (50/60Hz): 135/200 ● Standard power consumption Power cost (50Hz): 3.65 yen/h●Standard power consumption cost (60Hz): 5.4 yen/h●Current value (50Hz/60Hz): 1.7A/2.1A●External dimensions (mm) width: 245●External dimensions (mm) depth: 314●External dimensions (mm) height: 326●Compatible with 50/60Hz●Power cord: 1.8m (with earth clip)●Corrosion-resistant paint finish (motor surface)●Can be customized to accommodate different voltages from a single unit●Quality warranty period: 1 year Material/Finish:●Blades: Resin Caution:●Not explosion-proof.●Duct sold separately.●Do not use in places exposed to rainwater.
