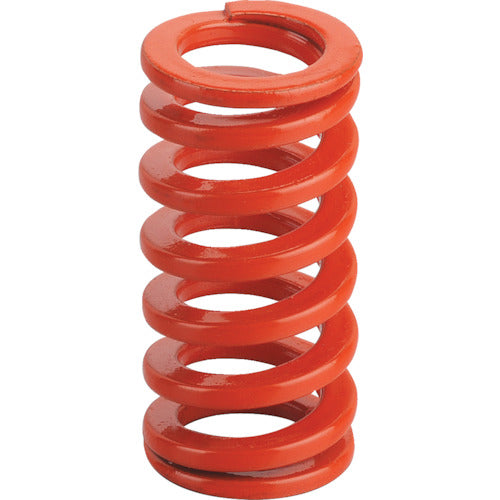

TRUSCO mold spring coil spring for medium deflection outer diameter 14.5Φ free length 80mm T-SSWS14.5-80 1 piece

Catalog number: T-SSWS14.5-80 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 14.5 ●Inner diameter (mm): 8.5 ●Free length (mm): 80 ●Spring constant (N/mm): 6.13 ●D (mm): 14.5 ●L (mm): 80 ●d (mm): 8.5 ●Identification color: Orange Material/Finish: ●Equivalent to SWOSC-V
