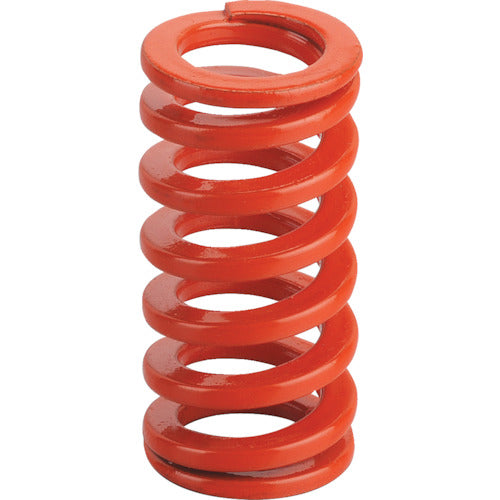

TRUSCO mold spring coil spring for medium deflection outer diameter 17.0Φ free length 45mm T-SSWS17-45 1 piece

Catalog number: T-SSWS17-45 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 17.0 ●Inner diameter (mm): 10.5 ●Free length (mm): 45 ●Spring constant (N/mm): 16.34 ●D (mm): 17.0 ●L (mm): 45 ●d (mm): 10.5 ●Identification color: Orange Material/Finish: ●Equivalent to SWOSC-V
