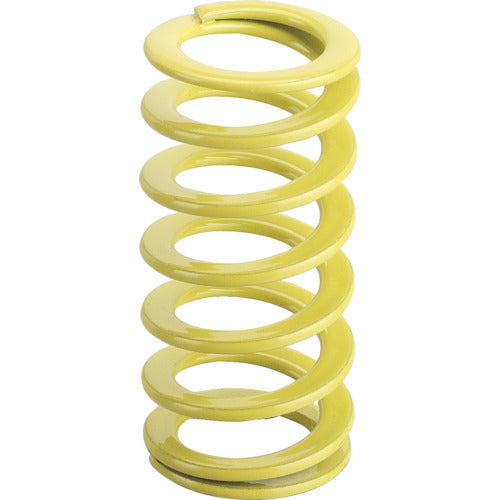

TRUSCO Mold Spring Coil Spring for Extra-Large Deflection Outer Diameter 24.5mm Free Length 125mm T-SSWY24.5-125 1 pc

Catalog number: T-SSWY24.5-125 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 24.5 ●Inner diameter (mm): 16.5 ●Free length (mm): 125 ●Spring constant (N/mm): 1.68 ●D (mm): 24.5 ●L (mm): 125 ●d (mm): 16.5 ●Identification color: Yellow green Material/Finish: ●Equivalent to SWOSC-V
