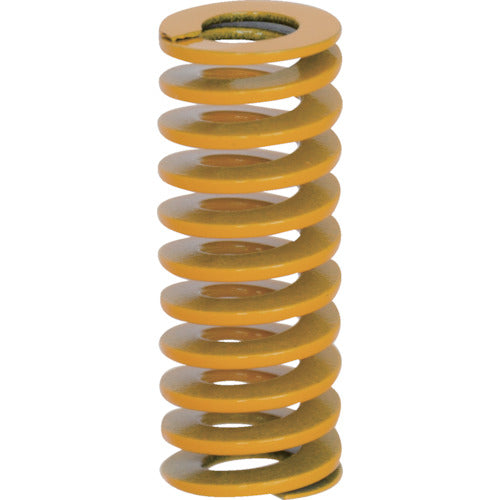

TRUSCO mold spring coil spring light load outer diameter 22mm free length 40mm T-SSWF22-40 1 piece

TRUSCO mold spring coil spring light load outer diameter 22mm free length 40mm T-SSWF22-40 1 piece

JAN：4550414195114 　
Die Springs Machine tools Mold peripherals Mold supplies TRUSCO Bolt 01
¥262
¥262
Sale Sold out
Shipping calculated at checkout.

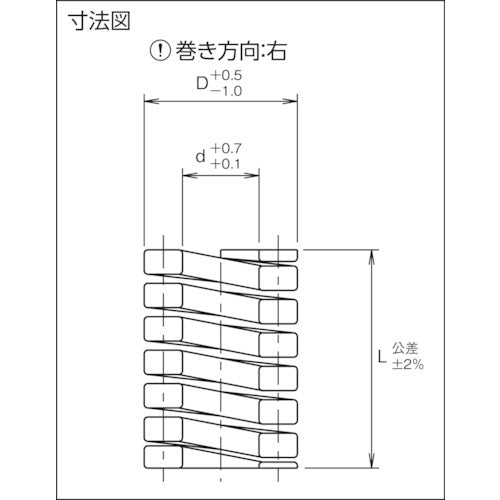

Catalog number: T-SSWF22-40 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 22 ●Inner diameter (mm): 11 ●Free length (mm): 40 ●Spring constant (N/mm): 19.6 ●D (mm): 22 ●L (mm): 40 ●d (mm): 11 ●Spring constant {kgf/mm}: {2.00} ●Identification color: Yellow Material/Finish: ●Equivalent to SWOSC-V
View full details
