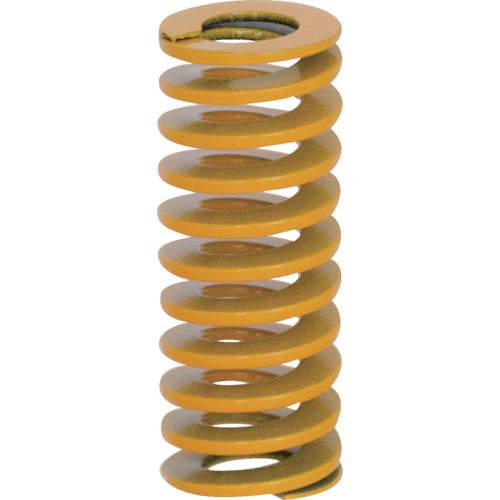

TRUSCO mold spring coil spring light load outer diameter 27mm free length 100mm T-SSWF27-100 1 piece

TRUSCO mold spring coil spring light load outer diameter 27mm free length 100mm T-SSWF27-100 1 piece

JAN：4550414195398 　
Die Springs Machine tools Mold peripherals Mold supplies TRUSCO Bolt 01
¥467
¥467
Sale Sold out
Shipping calculated at checkout.

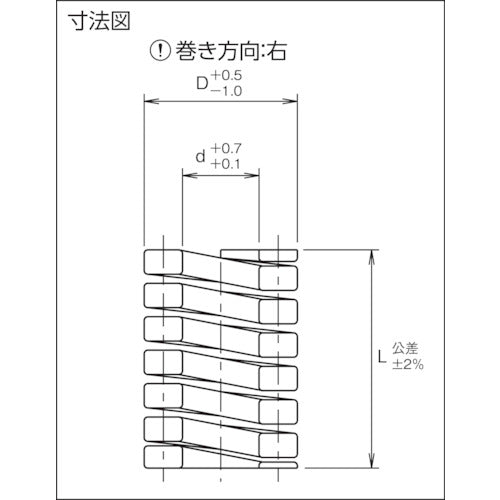

Catalog number: T-SSWF27-100 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 27 ●Inner diameter (mm): 13.5 ●Free length (mm): 100 ●Spring constant (N/mm): 11.8 ●D (mm): 27 ●L (mm): 100 ●d (mm): 13.5 ●Spring constant {kgf/mm}: {1.20} ●Identification color: Yellow Material/Finish: ●Equivalent to SWOSC-V
