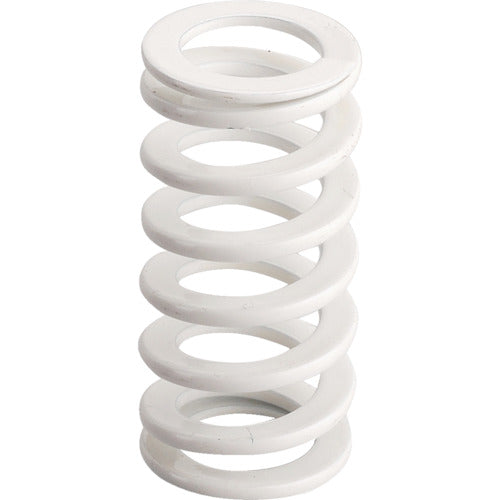

TRUSCO mold spring coil spring for high deflection outer diameter 31 mm free length 130 mm T-SSWR31-130 1 pc

Catalog number: T-SSWR31-130 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 31.0 ●Inner diameter (mm): 21 ●Free length (mm): 130 ●Spring constant (N/mm): 7.54 ●D (mm): 37.0 ●L (mm): 130 ●d (mm): 26 ●Identification color: Off-white Material/Finish: ●Equivalent to SWOSC-V
