TRUSCO Copper foil shield tube Magic type 10Φ Length 5m CPFM-10-5 1 roll

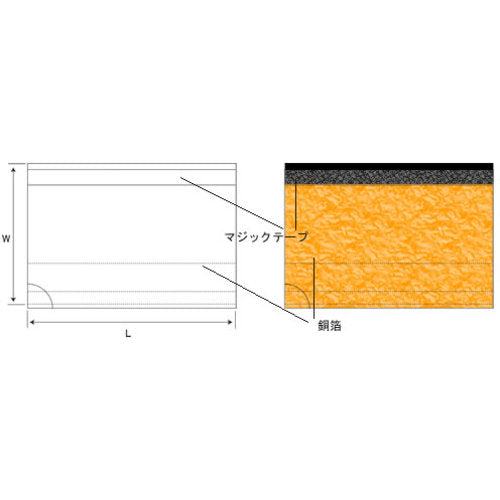

Catalog number: CPFM-10-5 Features: ●By using a special copper sheet, it is resistant to unwanted radiation and has a significantly improved shielding effect. ●It has a better electromagnetic wave shielding effect than aluminum shielded tubes. ●It achieves an electrical resistance value of 0.04 Ω/cm, which is about half that of aluminum. ●Since soldering is very easy, earth installation can be completed in a short time. Uses: ●As an EMC measure for the spread of next-generation communication standards "5G" and "IOT". Specifications: ●Color: Black ●Nominal diameter (mm): 10 ●Length (m): 5 ●Inner diameter (mm): 10 ●Usage temperature range: -50 to 60°C Materials/Finish: ●PVC sheet with polyester cloth, special copper foil sheet (0.020 mm) (PET coated) ●Hook-and-loop tape part: Nylon fiber, polyurethane resin
