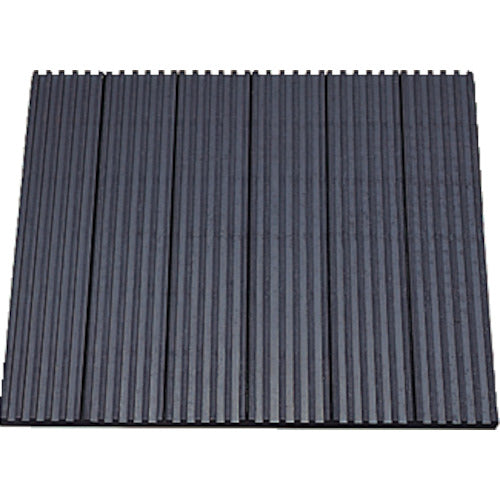

TRUSCO Anti-Vibration Pad, Heat and Oil Resistant, Sheet Type, 300 x 300, Thickness 20mm, Synthetic Rubber, OH-20CR, 1 Sheet

Catalog number: OH-20CR Features: ●Easy to process, just cut the V-grooves at 50 mm intervals with a utility knife. ●Resistant to cutting oil, machine oil, lubricating oil, etc. ●Wide range of loads, stable vibration-proofing effect regardless of load. Applications: ●For equipment that generates various vibrations and noises, such as machine tools, blowers, pumps, and various motors. ●For vibration-proofing of refrigerators, air conditioners, printers, etc. Specifications: ●Thickness (mm): 20 ●Width (mm): 300 ●Length (mm): 300 ●Color: Black ●Allowable surface pressure (N/[MM2]): 0.3 ●Rubber hardness: 55°±5 ●Usage temperature range: -5 to 110°C Material/Finish: ●Synthetic rubber (CR) Caution: ●Due to the rubber manufacturing process, this product has a strong rubber smell. ●When used in a small space or an airtight office or house, the smell may be strong. ●Components contained in rubber (oil, etc.) may transfer to the object it comes into contact with, causing marks or discoloration. (Discoloration/deterioration of physical properties) ●OH-8CR does not have a V-groove.
