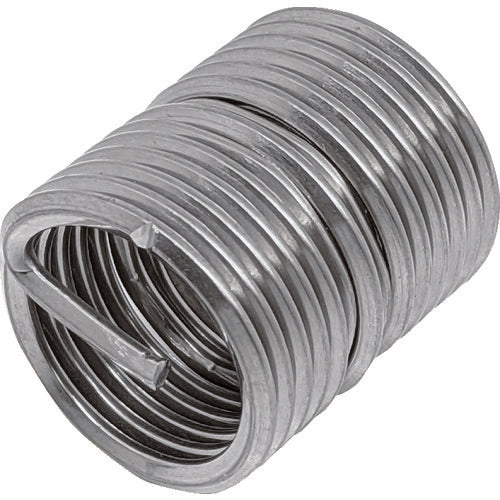

TRUSCO E-sert lock insert LM12X1.75 2DNS 2 pieces ER-M12175X2DNS 1 PK

Catalog number: ER-M12175X2DNS Features: ● Standard insert function with added anti-loosening effect. ● The middle part 1-2 turns are polygonal, which tightens the bolt firmly. Applications: ● Strengthens the female thread of the base material (light alloy, die cast, cast iron, plastic, resin). Specifications: ● Suitable bolt thread: M12 x 1.75 ● Pilot hole diameter (mm): 12.4 ● Thread designation: M12 ● Thread pitch: 1.75 ● Dimensions (mm) L: 24 ● Dimensions (mm) D1: 14.98 Material/Finish: ● Stainless steel (SUS304) Note: ● E-sert is a registered trademark of Tsugami Corporation.
