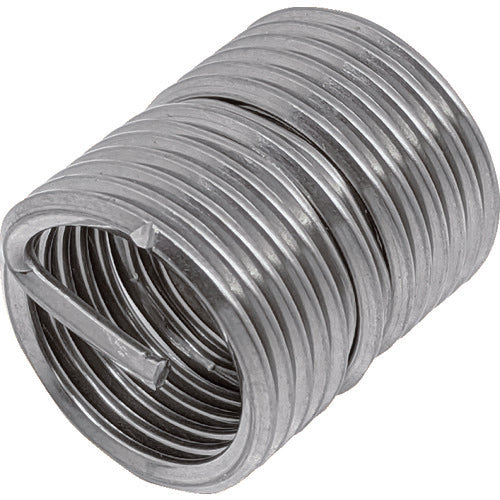

TRUSCO E-sert lock insert LM8X1.25 1DNS 4 pieces ER-M8125X1DNS 1 PK

Catalog number: ER-M8125X1DNS Features: ● Standard insert function with added anti-loosening effect. ● The middle part 1-2 turns are polygonal, which tightens the bolt firmly. Applications: ● Strengthens the female thread of the base material (light alloy, die cast, cast iron, plastic, resin). Specifications: ● Suitable bolt thread: M8 x 1.25 ● Pilot hole diameter (mm): 8.3 ● Thread designation: M8 ● Thread pitch: 1.25 ● Dimensions (mm) L: 8 ● Dimensions (mm) D1: 10.28 Material/Finish: ● Stainless steel (SUS304) Note: ● E-sert is a registered trademark of Tsugami Corporation.
