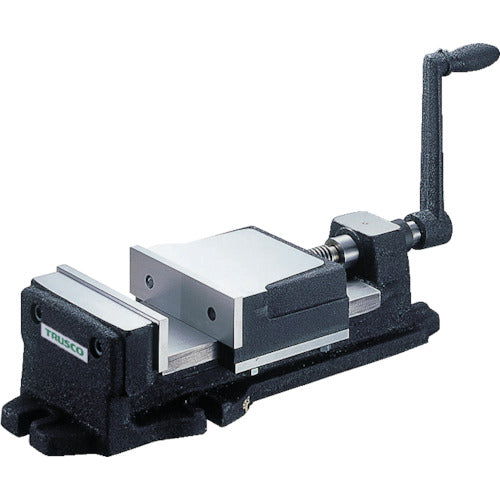

TRUSCO F-type milling vise 130mm MF-130 1 unit

Catalog number: MF-130 Features: ● Strong and durable design throughout. ● Attached to a milling machine and used primarily for rough machining. Specifications: ● Overall length (mm): 382 ● Overall width (mm): 148 ● Overall height (mm): 98 ● Jaw width (mm): 132 ● Jaw opening (mm): 82 ● Jaw depth (mm): 37 ● Clamping force (kN): 9.80 ● Mounting hole dimensions (mm): M10 Material/Finish: ● Ordinary cast iron (FC250) Caution: ● There are no guide blocks or holes for mounting the guide blocks. Please secure with a jig such as a T-slot nut or stud bolt.
