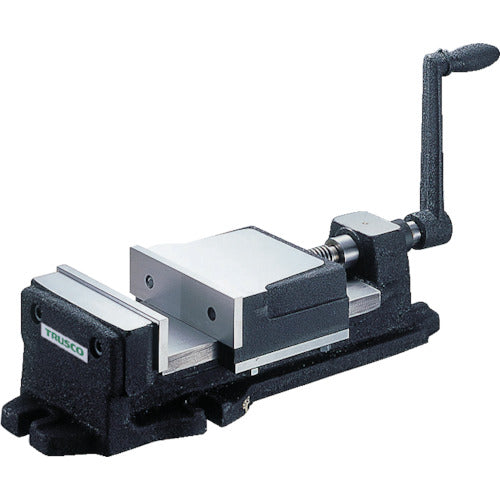

TRUSCO F-type milling vise 200mm MF-200 1 unit

Catalog number: MF-200 Features: ● Strong and durable design throughout. ● Attached to a milling machine and used primarily for rough machining. Specifications: ● Overall length (mm): 608 ● Overall width (mm): 233 ● Overall height (mm): 145 ● Jaw width (mm): 204 ● Jaw opening (mm): 146 ● Jaw depth (mm): 63 ● Clamping force (kN): 16.66 ● Mounting hole dimensions (mm): M16 Material/Finish: ● Ordinary cast iron (FC250) Caution: ● There are no guide blocks or holes for mounting the guide blocks. Please secure with a jig such as a T-slot nut or stud bolt.
