TRUSCO NEW Lock Nut Stainless Steel M10 3 Pieces B767-0010 1 PK

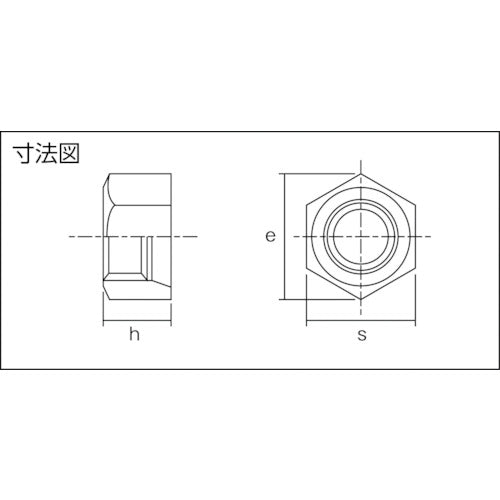

Catalog number: B767-0010 Features: ● The combination of a concave nut and an eccentric convex washer provides a strong anti-loosening effect. ● The single nut can be tightened in one go with a general-purpose tool, making it faster and easier than double nut types or resistance types. Applications: ● For structures that require a high level of safety, such as highways, bridges, and tunnels. Specifications: ● Nominal diameter: M10 x 1.50 ● Two-sided width dimension (mm): 17 ● Nut type: Anti-loosening nut ● Dimension (mm) e: 19.6 ● Dimension (mm) h: 10.0 ● Dimension (mm) m: 10.0 ● Dimension (mm) s: 17.0 ● Eccentric washer outer diameter (mm): 21.0 ● Eccentric washer thickness (mm): 1.4 ● Reference tightening torque (N・m): 33 ● Dimension (mm) E: 19.6 ● Package: Bolt pack (blister) Material/Finish: ● Stainless steel (equivalent to SUS304)
