TRUSCO NEW Lock Nut Stainless Steel M12 2 Pieces B767-0012 1 PK

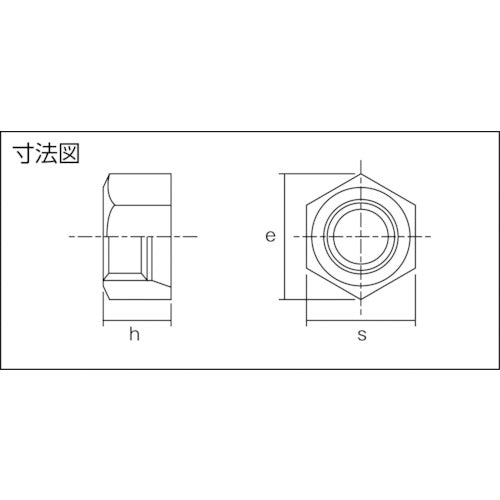

Catalog number: B767-0012 Features: ● The combination of a concave nut and an eccentric convex washer provides a strong anti-loosening effect. ● The single nut can be tightened in one go with a general-purpose tool, making it faster and easier than double nut types or resistance types. Applications: ● For structures that require a high level of safety, such as highways, bridges, and tunnels. Specifications: ● Nominal diameter: M12 x 1.75 ● Two-sided width dimension (mm): 19 ● Nut type: Anti-loosening nut ● Dimension (mm) e: 21.9 ● Dimension (mm) h: 12.0 ● Dimension (mm) m: 12.0 ● Dimension (mm) s: 19.0 ● Eccentric washer outer diameter (mm): 24.0 ● Eccentric washer thickness (mm): 1.5 ● Reference tightening torque (N・m): 46 ● Dimension (mm) E: 21.9 ● Package: Bolt pack (blister) Material/Finish: ● Stainless steel (equivalent to SUS304)
