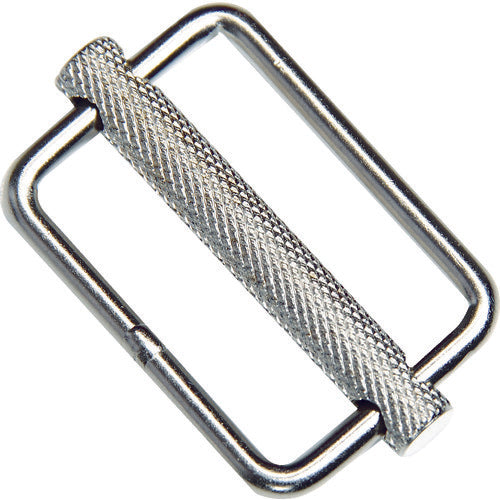

TRUSCO PP Belt Special Fitting 40mm Slide Buckle TSBK-40 1 pc

Catalogue number: TSBK-40 Features: ●Special fittings that can easily and securely tie PP belts. Applications: ●Special fittings for PP belts. ●Tightening belts. Specifications: ●Thickness (mm): 4 ●Maximum load capacity (kg): 100 ●Compatible width (mm): 40 ●Dimensions (mm) D: 56 ●Length (mm): 27 ●Compatible belt width (mm): 40 ●Width (mm): 41 ●Dimensions (mm) A: 41 ●Dimensions (mm) B: 27 ●Dimensions (mm) C: 4 ●Dimensions (mm) E: 8 Material/Finish: ●Steel ●Surface treatment: Nickel-plated finish Note: ●The lowest maximum load capacity of the PP belt and fittings to be combined will be the load capacity after combination.
