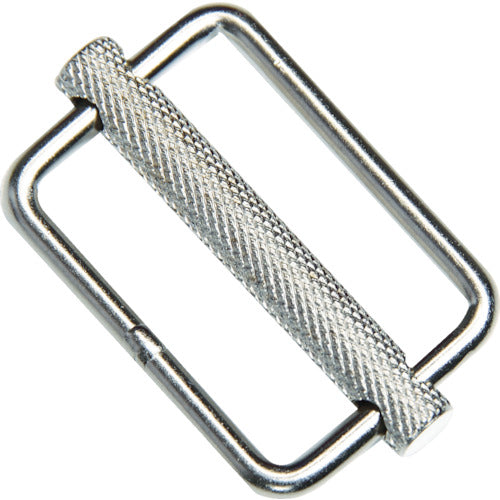

TRUSCO PP Belt Special Fitting 50mm Slide Buckle TSBK-50 1 pc

Catalogue number: TSBK-50 Features: ●Special fittings that can easily and securely tie PP belts. Applications: ●Special fittings for PP belts. ●Tightening belts. Specifications: ●Thickness (mm): 5 ●Maximum load capacity (kg): 150 ●Compatible width (mm): 50 ●Dimensions (mm) A: 51 ●Dimensions (mm) B: 32 ●Compatible belt width (mm): 50 ●Dimensions (mm) D: 68 ●Dimensions (mm) E: 9 ●Dimensions (mm) C: 5 ●Width (mm): 51 ●Height (mm): 32 Material/Finish: ●Steel ●Surface treatment: Nickel-plated finish Note: ●The lowest maximum load capacity of the PP belt and fittings to be combined will be the load capacity after combination.
