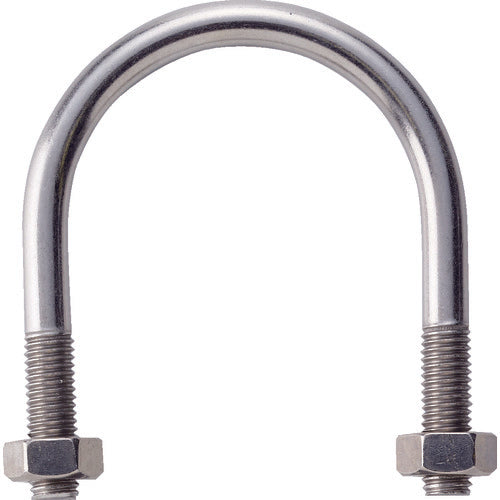

TRUSCO SGP U-Bolt SUS304 Nominal Diameter 50A Thread Diameter M10 TSGP-BTM10-50A-S 1 pc

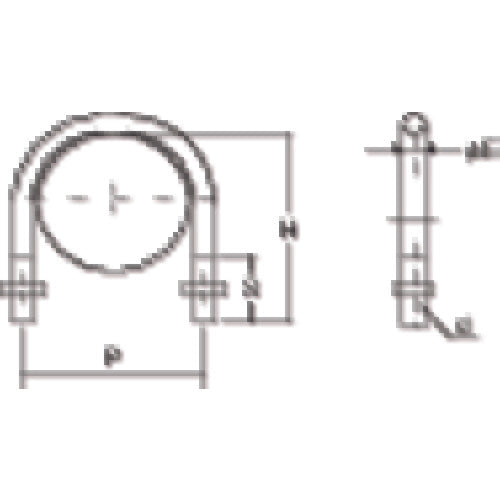

Catalogue number: TSGP-BTM10-50A-S Features: ● U-shaped metal fitting with metric threads. Applications: ● SGP pipe tightening fitting. ● For horizontal and vertical piping. ● For fastening gas pipes, air conditioning pipes, and electrical panels. Specifications: ● Suitable pipe outer diameter D: 50A ● Suitable pipe outer diameter (mm): 60.5 ● P (mm): 74 ● H (mm): 85 ● S (mm): 30 ● E (mm): 8.85 ● d (mm): M10 ● Nominal diameter A: 50 ● Nominal diameter B: 2 Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Nuts x 2
